REAR STABILIZER

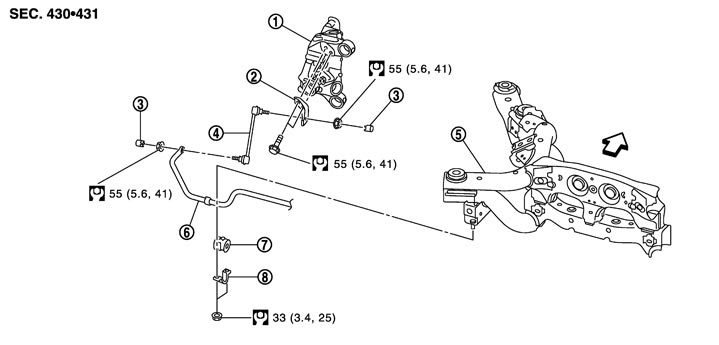

Exploded View




1.
 		Axle housing
 		2.
 		Stabilizer connecting rod mounting bracket
 		3.
 		Cap
4.
 		Stabilizer connecting rod
 		5.
 		Rear suspension member
 		6.
 		Stabilizer bar
7.
 		Stabilizer bushing
 		8.
 		Stabilizer clamp

: Vehicle front
Refer to Components for the symbols in the figure.

Removal and Installation


 REMOVAL

    1.Remove tires with power tool.
    2.Remove rear diffuser. Refer to Exploded View.
    3.Remove main muffler assembly. Refer to Exploded View.
    4.Remove cap, and then stabilizer connecting rod.
    ■ CAUTION ■
    Apply a matching mark to identity the installation position.
    5.Remove stabilizer connecting rod mounting bracket.
    6.Remove stabilizer clamp and stabilizer bushing, and then remove stabilizer bar.

 INSTALLATION

Note the following, and install in the reverse order of removal.
  • Check the matching mark when installing.
  • Tighten the mounting nut to the specified torque while holding a hexagonal part of stabilizer connecting rod side.

Inspection


 INSPECTION AFTER REMOVAL

Check stabilizer bar, stabilizer connecting rod, stabilizer bushing, stabilizer clamp and stabilizer connecting rod mounting bracket for deformation, cracks and damage. Replace it if necessary.
