FUEL LEVEL SENSOR SIGNAL CIRCUIT
Description
Component Function Check
Diagnosis Procedure
Component Inspection
Description
Detects the fuel level in fuel tank using the fuel gauge unit, and transmits the fuel gauge signal to the combination meter.
Component Function Check
1.CHECK COMBINATION METER OUTPUT SIGNAL
Connect CONSULT‐III.
Select the “DATA MONITOR” for the “METER/M&A”, then compare the “Fuel meter” monitor value with the fuel gauge reading on combination meter.
Fuel gauge indication position
Monitor value [L]
Full
Approx. 67.2
3/4
Approx. 54.9
1/2
Approx. 39.0
1/4
Approx. 24.8
E
Approx. 9.0
Does the monitor value match the fuel gauge reading?
YES
>>
INSPECTION END
NO
>>
Replace the combination meter.
Diagnosis Procedure
1.CHECK COMBINATION METER INPUT SIGNAL
Turn the ignition switch ON.

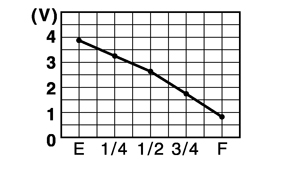

Check the voltage between the combination meter harness connector and the ground.
Probe
Voltage
(+)
(-)
Combination meter
Ground
Connector
Terminal
M53
38
Does it match the fuel gauge indication position?
YES
>>
GO TO 2.
NO
>>
Replace the combination meter.
2.CHECK FUEL GAUGE UNIT (SUB) CIRCUIT
Turn the ignition switch OFF.
Disconnect the connectors of combination meter and fuel gauge unit (sub).
Check for continuity between the combination meter harness connector and the fuel gauge unit (sub) harness connector.
Combination meter
Fuel gauge unit (sub)
Continuity
Connector
Terminal
Connector
Terminal
M53
38
B27
1
Existed
Check for continuity between the combination meter harness connector and the ground.
Combination meter
Ground
Continuity
Connector
Terminal
M53
38
Not existed
Is the inspection result normal?
YES
>>
GO TO 3.
NO
>>
Repair the harnesses or connectors.
3.CHECK FUEL GAUGE UNIT (MAIN-SUB) CIRCUIT
Disconnect fuel gauge unit (main) connector.
Check for continuity between the fuel gauge unit (sub) harness connector and the fuel gauge unit (main) harness connector.
Fuel gauge unit (sub)
Fuel gauge unit (main)
Continuity
Connector
Terminal
Connector
Terminal
B27
2
B225
2
Existed
Check for continuity between the fuel gauge unit (sub) harness connector and the ground.
Fuel gauge unit (sub)
Ground
Continuity
Connector
Terminal
B27
2
Not existed
Is the inspection result normal?
YES
>>
GO TO 4.
NO
>>
Repair the harnesses or connectors.
4.CHECK FUEL GAUGE UNIT (MAIN) CIRCUIT
Check for continuity between the fuel gauge unit (main) harness connector and the combination meter harness connector.
Fuel gauge unit (main)
Combination meter
Continuity
Connector
Terminal
Connector
Terminal
B225
3
M53
18
Existed
Is the inspection result normal?
YES
>>
INSPECTION END
NO
>>
Repair the harnesses or connectors.
Component Inspection
1.CHECK FUEL GAUGE UNIT (MAIN)
Check the resistance value of fuel gauge unit (main).
2 – 3
Full
:Approx. 3.0 Ω
Empty
:Approx. 90.0 Ω
Standard float position
Full (A) [mm (in)]
:Approx. 282.2 (11.11)
Empty (B) [mm (in)]
:Approx. 19.2 (0.756)
Is the inspection result normal?
YES
>>
GO TO 2.
NO
>>
Replace the fuel gauge unit (main).
2.CHECK FUEL GAUGE UNIT (SUB)
Check the resistance value of fuel gauge unit (sub).
1 – 2
Full
:Approx. 3.0 Ω
Empty
:Approx. 45.9 Ω
Standard float position
Full (A) [mm (in)]
:Approx. 29.9 (1.177)
Empty (B) [mm (in)]
:Approx. 218.3 (8.59)
Is the inspection result normal?
YES
>>
INSPECTION END
NO
>>
Replace the fuel gauge unit (sub).
