METER CONTROL SWITCH

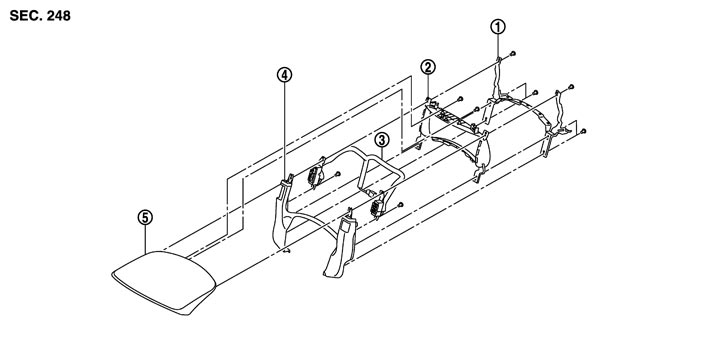

Refer to Exploded View.

1.	Bracket	2.	Meter housing	3.	Meter control switch
4.	Cluster lid A under cover	5.	Cluster lid A front cover

1.Remove the combination meter.

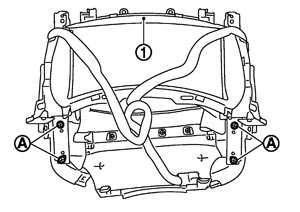

2.Remove the screws (A), and then remove the cluster lid A front cover (1).

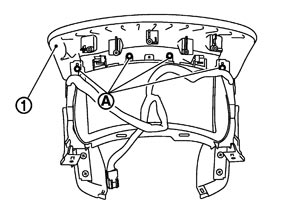

3.Remove the screws (A), and then remove the bracket and meter housing (1).

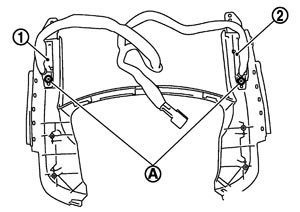

4.Remove the screws (A), and then remove the drive computer switch (1), illumination control switch, and trip A/B reset switch (2).

Install in the reverse order of removal.
