E-SUS CONTROL UNIT
Bilstein DampTronic

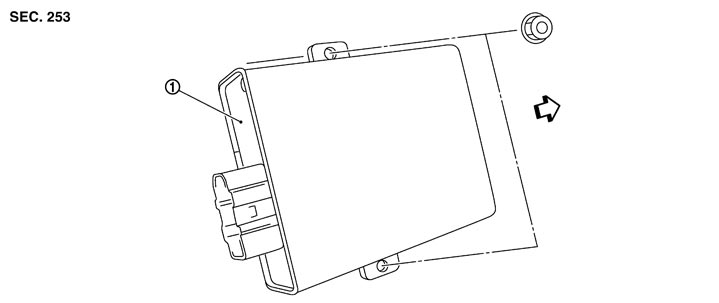

Exploded View
|
1. |
E-SUS control unit |
|
|
|
|
 : Vehicle front |
|||||
Removal and Installation
REMOVAL- 1.Turn the ignition switch OFF.
- 2.Remove the glove box assembly. Refer to Exploded View.
- 3.Remove the lower instrument panel RH. Refer to Exploded View.
- 4.Remove the ECM.
- 5.Disconnect the E-SUS control unit connector.
■ CAUTION ■
Always open the lock lever on the harness connector before disconnecting it. - 6.Remove the E-SUS control unit mounting nuts.
- 7.Remove E-SUS control unit.
INSTALLATIONInstall in the reverse order of removal.
