FRONT VERTICAL G SENSOR
Bilstein DampTronic

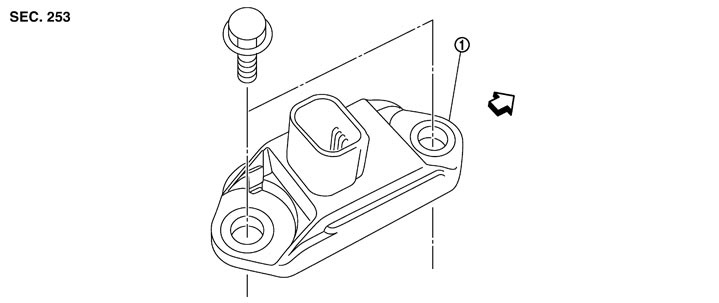

Exploded View
|
1. |
Front vertical G sensor |
|
|
|
|
 : Vehicle front |
|||||
Removal and Installation
REMOVAL■ CAUTION ■
Never drop or strike front vertical G sensor, or do not use power tool etc., because front vertical G sensor is sensitive to the impact.
- 1.Turn the ignition switch OFF.
- 2.Remove the RH cowl top panel. Refer to Exploded View.
- 3.Disconnect the front vertical G sensor connector.
- 4.Remove the front vertical G sensor mounting bolts.
- 5.Remove the front vertical G sensor.
INSTALLATIONInstall in the reverse order of removal.
■ CAUTION ■
Never drop or strike front vertical G sensor, or do not use power tool etc., because front vertical G sensor is sensitive to the impact.
