REAR VERTICAL G SENSOR
Bilstein DampTronic

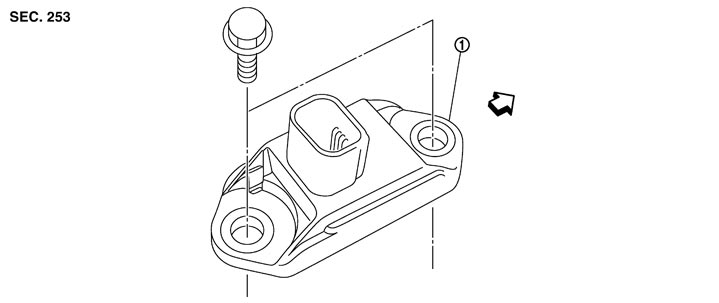

Exploded View
|
1. |
Rear vertical G sensor |
|
|
|
|
 : Vehicle front |
|||||
Removal and Installation
REMOVAL■ CAUTION ■
Never drop or strike rear vertical G sensor, or do not use power tool etc., because rear vertical G sensor is sensitive to the impact.
- 1.Turn the ignition switch OFF.
- 2.Remove the rear wheel well finisher (LH). Refer to Exploded View.
- 3.Disconnect the rear vertical G sensor connector.
- 4.Remove the rear vertical G sensor mounting bolts.
- 5.Remove the rear vertical G sensor.
INSTALLATIONInstallation is the reverse order of removal.
■ CAUTION ■
Never drop or strike rear vertical G sensor, or do not use power tool etc., because rear vertical G sensor is sensitive to the impact.
