TRANSMITTER WAKE UP OPERATION

1. Turn the ignition switch ON.


2. Contact the transmitter activation tool (J-45295) (1) to the side of the tire at the location to the transmitter.
3. Press and hold the activation tool button while pushing the tool to the tire surface. (approximately for 5 seconds)
   ■ CAUTION ■
   Perform the wake-up procedure starting from the vehicle front left wheel, then repeat the procedure in the order of the front right wheel, rear right wheel, and rear left wheel.

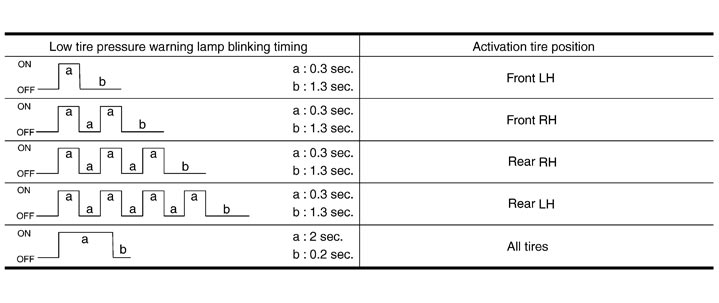

4. Check that the low tire pressure warning lamp blinks in the pattern shown as per the following. The pattern indicates that the transmitter wake-up procedure for the wheel is completed.


5. Check that the turn signal lamps blink twice when the transmitter wake-up procedure for all wheels is completed.
6. Check that the low tire pressure warning lamp turns OFF, after the transmitter wake-up procedure is completed for all wheels and turns OFF.

YES>>Perform the transmitter ID registration procedure. Refer to Transmitter ID Registration Procedure.

NO>>Perform trouble diagnosis for the transmitter. Refer to Diagnosis Procedure (GT-R certified NISSAN dealer).
