C1730, C1731, C1732, C1733 FLAT TIRE
C1730 C1731 C1732 C1733
Description

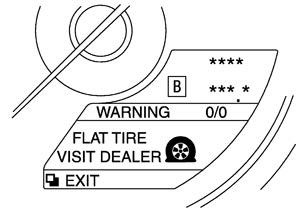

If the tire pressure drops below the specified value, the tire pressure monitoring control unit judges that a flat tire occurs and displays a message on the information display.
DTC Logic
DTC DETECTION LOGIC|
DTC |
Display Item |
Malfunction detected condition |
Possible causes |
|
C1730 |
FLAT TIRE FL |
Front left wheel pressure is 70 kPa (0.7 kg/cm2, 10 psi) or less |
Low tire pressure |
|
C1731 |
FLAT TIRE FR |
Front right wheel pressure is 70 kPa (0.7 kg/cm2, 10 psi) or less |
|
|
C1732 |
FLAT TIRE RR |
Rear right wheel pressure is 70 kPa (0.7 kg/cm2, 10 psi) or less |
|
|
C1733 |
FLAT TIRE RL |
Rear left wheel pressure is 70 kPa (0.7 kg/cm2, 10 psi) or less |
DTC REPRODUCTION PROCEDURE
1.CHECK DTC DETECTION
With CONSULT-III
