Nissan GT-R (R35) · Service Manual SUSPENSION

TPMS SYMPTOMS


 LOW TIRE PRESSURE WARNING LAMP SYMPTOM CHART

Diagnosis items
 		Symptom
(Ignition switch ON)
 		Low tire pressure warning lamp
 		Cause
 		Action
Low tire pressure warning lamp

 		The low tire pressure warning lamp illuminates for 1 second, then turns OFF.

Wake-up operation for all transmitters at wheels is completed.
 		No system malfunctions

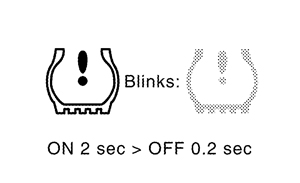

The low tire pressure warning lamp repeats blinking ON for 2 seconds and OFF for 0.2 seconds.

Wake-up operation for all transmitters at wheels is not completed.
 		Perform the wake-up operation for all transmitters at wheels. Refer to Transmitter Wake-up Procedure .
The low tire pressure warning lamp blinks once.

The front left transmitter is not activated.
 		Perform the wake-up operation for the transmitter at front left wheel. Refer to Transmitter Wake-up Procedure .

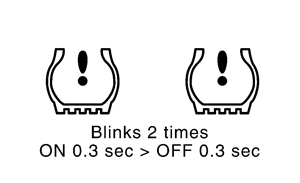

The low tire pressure warning lamp repeats blinking twice.

The front right transmitter is not activated.
 		Perform the wake-up operation for the transmitter at front right wheel. Refer to Transmitter Wake-up Procedure .

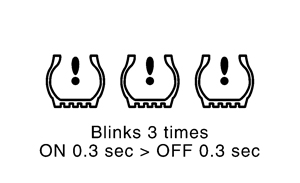

The low tire pressure warning lamp repeats blinking for 3 times.

The rear right transmitter is not activated.
 		Perform the wake-up operation for the transmitter at rear right wheel. Refer to Transmitter Wake-up Procedure .

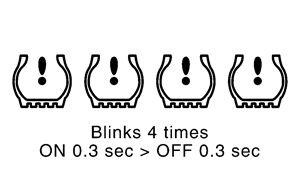

The low tire pressure warning lamp repeats blinking for 4 times.

The rear left transmitter is not activated.
 		Perform the wake-up operation for the transmitter at rear left wheel. Refer to Transmitter Wake-up Procedure .
The low tire pressure warning lamp turns ON and stays illuminated.

Low tire pressure
 		Check with CONSULT-III the tire pressure values. Refer to CONSULT-III Function (GT-R certified NISSAN dealer).
Low tire pressure warning lamp

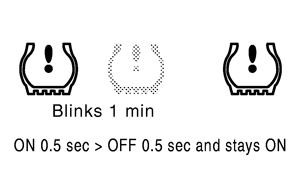

 		The low tire pressure warning lamp repeats blinking at 0.5-second intervals for 1 minute, and then stays illuminated.

The combination meter fuse is open or removed (or pulled out).
 		Check and install the combination meter fuse. If necessary, replace the fuse.
The low tire pressure warning control unit harness connector is removed.
 		Check the connection conditions of the low tire pressure warning control unit harness connector, and repair if necessary.
Tire Pressure Monitoring System (TPMS) malfunction.
Turn signal lamp
 		The turn signal lamps do not blink twice when the transmitter is activated. Or the buzzer does not sound.
 		—
  1. The transmitter activation tool (J-45295) does not activate.
  2. The ignition switch is OFF when the transmitter wake-up operation is performed.
  3. The transmitter activation tool (J-45295) is not used in the correct position.
  4. The transmitter is already waked up.
  1. Replace the battery in the transmitter activation tool (J-45295).
  2. Turn the ignition switch ON when performing the transmitter wake-up operation.
  3. Operate the transmitter activation tool (J-45295) in the correct position when performing the wake-up operation.
  4. No procedure.

NOTE：
 If transmitter wake-up operation is not completed for two or more transmitters, the applicable low tire pressure warning lamp blinking patterns are displayed continuously.
(Example: Blinks once/OFF/blinks 3 times = Wake-up operation is not completed at the front left wheel and rear right wheel transmitters.)
