"TIRE PRESSURE" INFORMATION IN DISPLAY UNIT DOES NOT EXIST

When the combination meter receives the signal of the malfunction via CAN communication from the low tire pressure warning control unit, it displays a message on the information display and warns the driver of the tire pressure and the Tire Pressure Monitoring System (TPMS) status.

Condition	Information display
Ignition switch OFF.	Nothing displayed.

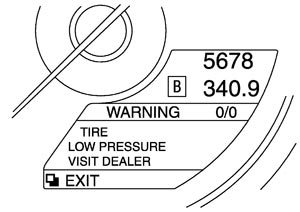

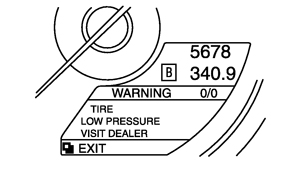

Tire pressure is low. Tire pressure is 150 kPa (1.5 kg/cm2, 22 psi) or less

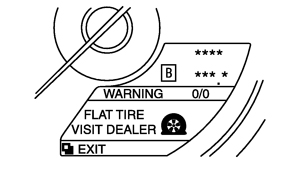

Tire is flat. Tire pressure is 70 kPa (0.7 kg/cm2, 10 psi) or less

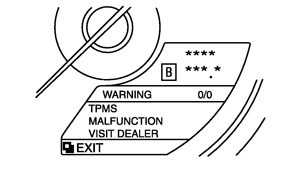

Tire Pressure Monitoring System (TPMS) malfunction
