Nissan GT-R (R35) · Service Manual SUSPENSION

LOW TIRE PRESSURE WARNING CONTROL UNIT

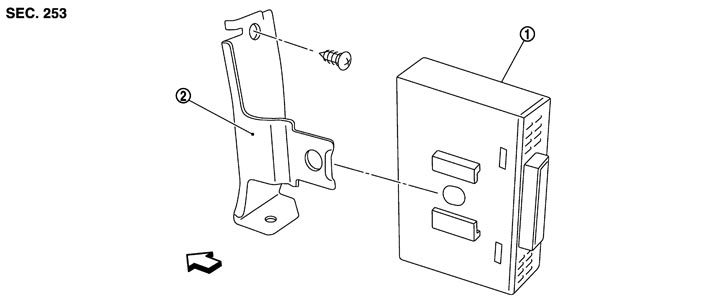

Exploded View



1.
 		Low tire pressure warning control unit
 		2.
 		Bracket



:Vehicle front

Removal and Installation


 REMOVAL

  1. Remove the instrument lower panel LH. Refer to Exploded View.
  2. Remove instrument pad B.
  3. Remove the mounting screw for the low tire pressure warning control unit.
  4. Disconnect the low tire pressure warning control unit harness connector.
  5. Remove the low tire pressure warning control unit.

 INSTALLATION

Note the following, and install in the reverse order of removal.
