Nissan GT-R (R35) · Service Manual SUSPENSION

FRONT TIRE PRESSURE RECEIVER

TIRE PRESSURE RECEIVER


 REMOVAL

  1. Remove the fender protector (rear). Refer to Exploded View.

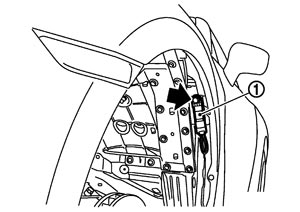

  2. Remove the mounting bolt () for the front tire pressure receiver (1).
  3. Disconnect the harness connector for the front tire pressure receiver.
  4. Remove the front tire pressure receiver.

 INSTALLATION

Note the following, and install in the reverse order of removal.
