FUEL PUMP CONTROL MODULE
VR38

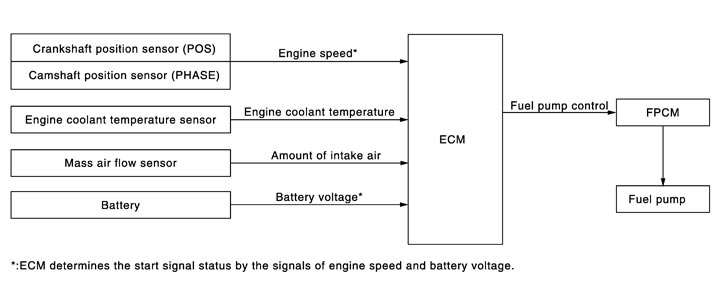

System Diagram
System Description
INPUT/OUTPUT SIGNAL CHART|
Sensor |
Input signal to ECM |
ECM function |
Actuator |
|
Crankshaft position sensor (POS) Camshaft position sensor (PHASE) |
Engine speed* |
Fuel pump control |
FPCM ↓ Fuel pump |
|
Engine coolant temperature sensor |
Engine coolant temperature |
||
|
Mass air flow sensor |
Amount of intake air |
||
|
Battery |
Battery voltage* |
SYSTEM DESCRIPTIONThe fuel pump control module (FPCM) controls the discharging volume of the fuel pump by the FPCM control signals (Low/Mid/Hi) depending on driving conditions.
| Conditions | Amount of fuel flow | Supplied voltage |
| Low | Approximately 8.5 V |
| high | Battery voltage (11 - 14 V) |
| Except the above | mid | Approximately 10 V |
Component Parts Location
|
1. |
Air cut solenoid valve relay |
2. |
Recirculation valve (bank 1) |
3. |
Refrigerant pressure sensor |
|
4. |
Mass air flow sensor (with intake air temperature sensor) (bank 1) |
5. |
Power steering pressure sensor |
6. |
EVAP canister purge volume control solenoid valve |
|
7. |
Cooling fan motor |
8. |
Cooling fan control module |
9. |
Intake valve timing control solenoid valve |
|
10. |
Turbocharger boost control solenoid valve |
11. |
Mass air flow sensor (with intake air temperature sensor) (bank 2) |
12. |
Recirculation valve (bank 2) |
|
13. |
Turbocharger boost sensor (bank 2) |
14. |
Cooling fan relay-1 |
15. |
Cooling fan relay-2 |
|
16. |
Electric throttle control actuator (bank 2) |
17. |
Ignition coil (with power transistor) and spark plug (bank 2) |
18. |
Camshaft position sensor (PHASE) (bank 2) |
|
19. |
Air cut solenoid valve (bank 2) |
20. |
Crankshaft position sensor (POS) |
21. |
Fuel injector (bank 2) |
|
22. |
Knock sensor |
23. |
Engine oil temperature sensor |
24. |
Fuel injector (bank 1) |
|
25. |
Engine coolant temperature sensor |
26. |
A/F sensor 1 (bank 1) |
27. |
Camshaft position sensor (PHASE) (bank 1) |
|
28. |
Air cut solenoid valve (bank 1) |
29. |
Manifold absolute pressure sensor |
30. |
Ignition coil (with power transistor) and spark plug (bank 1) |
|
31. |
Electric throttle control actuator (bank 1) |
32. |
EVAP service port |
33. |
Turbocharger boost sensor (bank 1) |
|
34. |
IPDM E/R |
35. |
Air pump cleaner |
36. |
Air pump |
|
37. |
Air pump relay |
|
|
|
|
|
1. |
Mass air flow sensor (with intake air temperature sensor) (bank 1) |
2. |
Mass air flow sensor (with intake air temperature sensor) (bank 2) |
|
|
|
:Vehicle front |
|
|
|
|
|
1. |
Manifold absolute pressure sensor |
2. |
Electric throttle control actuator (bank 1) |
3. |
Turbocharger boost sensor (bank 1) |
|
4. |
Turbocharger boost sensor (bank 2) |
5. |
Electric throttle control actuator (bank 2) |
|
|
|
|
:Vehicle front |
|
|
|
|
|
1. |
Intake valve timing control solenoid valve (bank1) |
2. |
Intake valve timing control solenoid valve (bank2) |
|
|
|
|
:Vehicle front |
|
|
|
|
|
1. |
Cooling fan relay-2 |
2. |
Cooling fan relay-1 |
3. |
Cooling fan motor-1 |
|
4. |
Cooling fan control module-1 |
5. |
Cooling fan control module-2 |
6. |
Cooling fan motor-2 |
|
|
:Vehicle front |
|
|
|
|
|
1. |
Power steering pressure sensor |
2. |
Refrigerant pressure sensor |
|
|
|
|
:Vehicle front |
|
|
|
|
|
1. |
EVAP service port |
2. |
EVAP canister purge volume control solenoid valve |
3. |
EVAP canister |
|
4. |
EVAP control system pressure sensor |
5. |
EVAP canister vent control valve |
|
|
|
|
:Vehicle front |
|
|
|
|
|
1. |
Ignition coil No.1 (with power transistor) |
2. |
Ignition coil No.3 (with power transistor) |
3. |
Ignition coil No.5 (with power transistor) |
|
4. |
Condenser |
5. |
Ignition coil No.6 (with power transistor) |
6. |
Ignition coil No.4 (with power transistor) |
|
7. |
Ignition coil No.2 (with power transistor) |
8. |
Fuel injector No.1 |
9. |
Fuel injector No.3 |
|
10. |
Fuel injector No.5 |
11. |
Fuel pressure regulator |
12. |
Fuel injector No.6 |
|
13. |
Fuel injector No.4 |
14. |
Fuel injector No.2 |
|
|
|
|
:Vehicle front |
|
|
|
|
|
1. |
Camshaft position sensor (PHASE) (bank 1) |
2. |
Camshaft position sensor (PHASE) (bank 2) |
|
|
|
|
:Vehicle front |
|
|
|
|
|
1. |
Engine oil temperature sensor |
2. |
PCV valve |
|
|
|
|
:Vehicle front |
|
|
|
|
|
1. |
Crankshaft position sensor (POS) |
2. |
Knock sensor (bank1) |
3. |
Knock sensor (bank2) |
|
|
:Vehicle front |
|
|
|
|
|
1. |
Boost control actuator (bank1) |
2. |
Turbocharger boost control solenoid valve |
3. |
Boost control actuator (bank2) |
|
|
:Vehicle front |
|
|
|
|
|
1. |
Heated oxygen sensor 2 (bank 2) |
2. |
Heated oxygen sensor 2 (bank 1) |
|
|
|
|
:Vehicle front |
|
|
|
|
|
1. |
A/F sensor 1 (bank 1) harness connector |
2. |
A/F sensor 1 (bank 2) harness connector |
|
|
|
|
:Vehicle front |
|
|
|
|
|
1. |
A/F sensor 1 (bank 2) |
2. |
A/F sensor 1 (bank 1) |
3. |
Fuel pump control module (FPCM) |
|
|
:Vehicle front |
|
|
|
|
|
1. |
Sub fuel pump harness connector |
2. |
Main fuel gauge fuel filter fuel pump assembly harness connector |
3. |
Sub fuel pump |
|
4. |
Main fuel gauge fuel filter fuel pump assembly |
5. |
Fuel pump |
|
|
|
|
:Vehicle front |
|
|
|
|
|
1. |
ECM |
2. |
Brake switch |
3. |
Stop lamp switch |
|
4. |
Accelerator pedal position sensor |
|
|
|
|
|
1. |
ASCD steering switch |
2. |
RESUME/ACCELERATE switch |
3. |
SET/COAST switch |
|
4. |
CANCEL switch |
5. |
MAIN switch |
|
|
|
1. |
Air cut solenoid valve (bank 2) |
2. |
Air cut solenoid valve (bank 1) |
3. |
Engine coolant temperature sensor |
|
4. |
Air pump |
5. |
Secondary air injection system mass air flow sensor |
|
|
|
|
:Vehicle front |
|
|
|
|
|
1. |
Air cut solenoid valve relay |
2. |
Air pump relay |
3. |
Air pump cleaner |
|
4. |
IPDM E/R |
|
|
|
|
