Nissan GT-R (R35) · Service Manual DRIVER CONTROLS

HORN

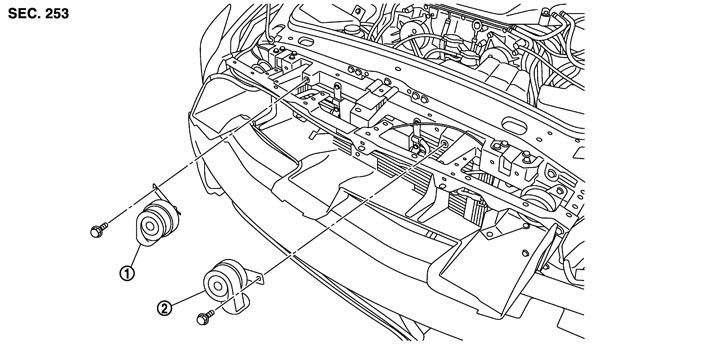

Exploded View




1.
 		Horn (HIGH)
 		2.
 		Horn (LOW)


Removal and Installation


 REMOVAL

    1.Remove the radiator cover.
    2.Disconnect the horn (LOW/HIGH) connector.
    3.Remove the horn mounting bolt, and remove the horn (LOW/HIGH) from the vehicle.

 INSTALLATION

Install in the reverse order of removal.
