WASHER TANK

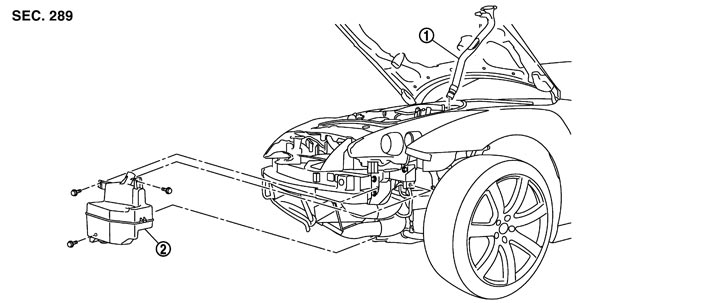

Exploded View
|
1. |
Washer tank inlet |
2. |
Washer tank |
|
|
Removal and Installation

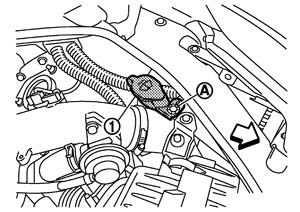

REMOVAL- 1.Remove the clip (A)
 | : Vehicle front |
- 2.Pull out the washer tank inlet from the washer tank.
- 3.Remove the front bumper fascia. Refer to Exploded View.
- 4.Disconnect the washer pump connector.
- 5.Disconnect the washer level switch connector.
- 6.Disconnect the front washer tube.
- 7.Remove the washer tank mounting bolts.
- 8.Remove the washer tank from the vehicle.
INSTALLATIONInstall in the reverse order of removal.
■ CAUTION ■
Add water up to the top of the washer tank inlet after installing. Check that there in no leakage.
