WASHER PUMP

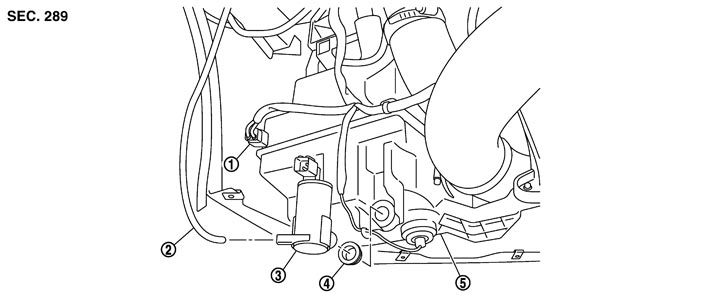

Exploded View
|
1. |
Washer pump connector |
2. |
Front washer tube |
3. |
Washer pump |
|
4. |
Packing |
5. |
Washer tank |
|
|
Removal and Installation
REMOVAL- 1.Remove the fender protector LH (front). Refer to Exploded View.
- 2.Disconnect the washer pump connector.
- 3.Disconnect the front washer tube.
- 4.Remove the washer pump from the washer tank.
- 5.Remove the packing from the washer tank.
INSTALLATIONInstall in the reverse order of removal.
■ CAUTION ■
Never twist the packing when installing the washer pump.
