Nissan GT-R (R35) · Service Manual DRIVER CONTROLS

DOOR MIRROR ASSEMBLY

OUTSIDE MIRROR

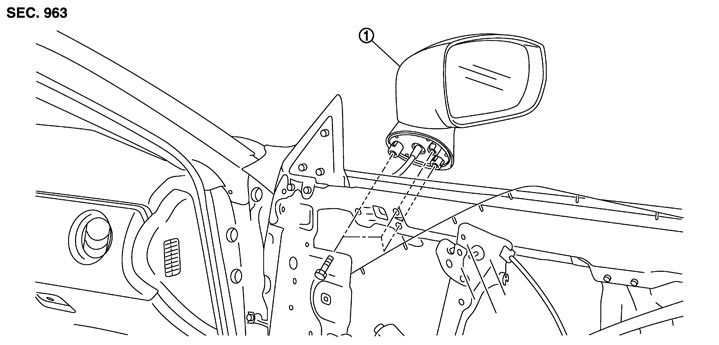

Exploded View


 REMOVAL



1.
 		Door mirror assembly

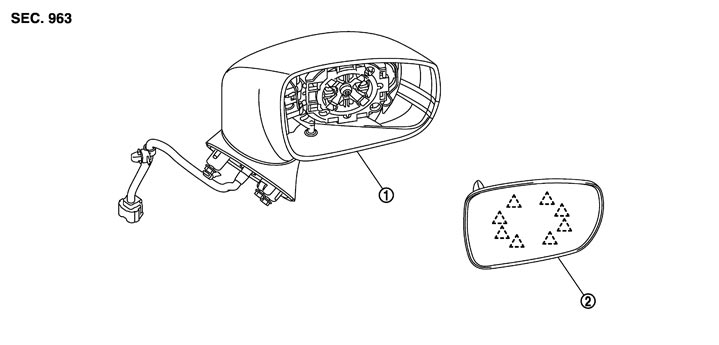

 DISASSEMBLY



1.
 		Mirror assembly
 		2.
 		Glass mirror


: Pawl




Removal and Installation


 REMOVAL

    1.Remove door finisher. Refer to Removal and Installation.
    2.Remove door inner west reinforcement. Refer to Exploded View.
    3.Disconnect door mirror harness connector.
    4.Remove mounting bolts, and remove door mirror assembly.

 INSTALLATION

Install in the reverse order of removal.
