SEAT BELT BUCKLE
REAR SEAT BELT
Inspection
Post-accident inspectionAfter a collision, check all parts of the installed seat belt assembly (including the retractor). Then, check the installed seat belt portion for damage or deformation. When a collision occurs, damage/deformation is detected, or operation is not normal, NISSAN recommends replacement of seat belt assembly. If replacement is not performed, serious personal injury may occur.
If the following conditions occur, replace the seat belt:
- When the seat belt is damaged
- When the installed seat belt portion is damaged (before installing a new seat belt, check the installed portion for damage or deformation)
- When the seat belt does not operate normally

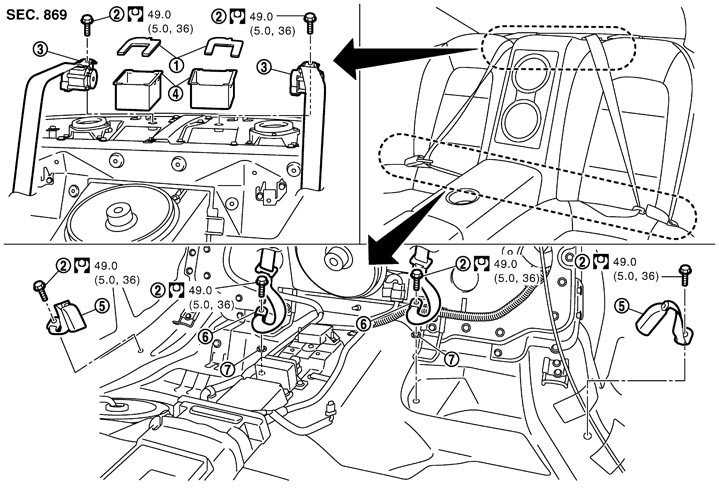

Exploded View
|
1. |
Insulator |
2. |
Anchor bolt |
3. |
Seat belt retractor |
|
4. |
Retractor cover |
5. |
Seat belt buckle |
6. |
Inner anchor |
|
7. |
Retaining washer |
|
|
|
|
|
Refer to Components for symbols in the figure. |
|||||
Removal and Installation
REMOVALRemove the seat belt buckle.
- Remove rear seat cushion. Refer to Removal and Installation.
- Remove the seat belt buckle mounting anchor bolts.
INSTALLATIONInstall in the reverse order of removal.
