FRONT PASSENGER AIR BAG MODULE

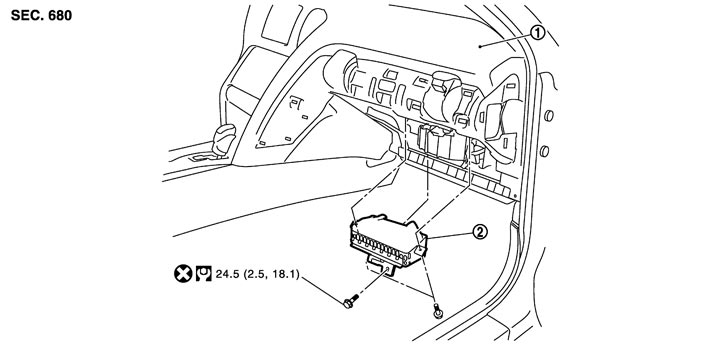

Exploded View
|
1. |
Instrument panel assembly |
2. |
Passenger air bag module |
|
|
|
Refer to Components for symbols in the figure. |
|||||
Removal and Installation
■ WARNING ■
- Before servicing, turn ignition switch OFF, disconnect battery negative terminal and wait at least 3 minutes.
- Always work from the side of air bag module. Never work in front of it.
- Never use the air tools or electric tools for servicing.
REMOVAL- 1.Remove the glove box assembly. Refer to Removal and Installation.
- 2.Remove the passenger instrument panel (lower). Refer to Removal and Installation.

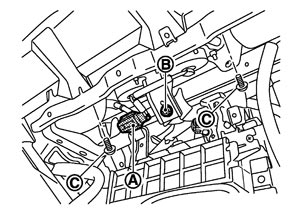

- 3.Disconnect the passenger air bag harness connector (A).
- 4.Remove the passenger air bag module mounting bolt (B) and screws (C).

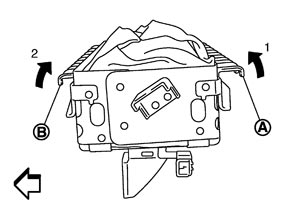

- 5.Disengage the metal clips (A) and (B), and then remove the passenger air bag module.
- Rotate the metal clips (A) toward vehicle front to remove.
- Rotate the metal clips (B) toward vehicle rear to remove.
 | : Vehicle front |
■ CAUTION ■
- Always place the passenger air bag module with pad side facing upward.
: Upward - Never impact the passenger air bag module.
- Replace the passenger air bag module if it is dropped or sustains an impact.
- Never insert any foreign objects (screwdriver, etc.) into passenger air bag module.
- Never disassemble the passenger air bag module.
- Never expose the passenger air bag module to temperatures exceeding 90°C (194°F).
- Never allow oil, grease, detergent, or water to come in contact with the passenger air bag module.
INSTALLATIONInstall in the reverse order of removal.
■ CAUTION ■
- Never use the old fixing bolts after removal, replace with the new bolts.
- Never damage the harness while installing.
- If malfunction is detected by the air bag warning lamp, after repair or replacement of the malfunctioning parts, reset the memory using self-diagnosis or CONSULT-III. Refer to Diagnosis Description.
- After the work is complete, check that no system malfunction is detected by air bag warning lamp.
