Nissan GT-R (R35) · Service Manual BODY INTERIOR

TRUNK ROOM TRIM

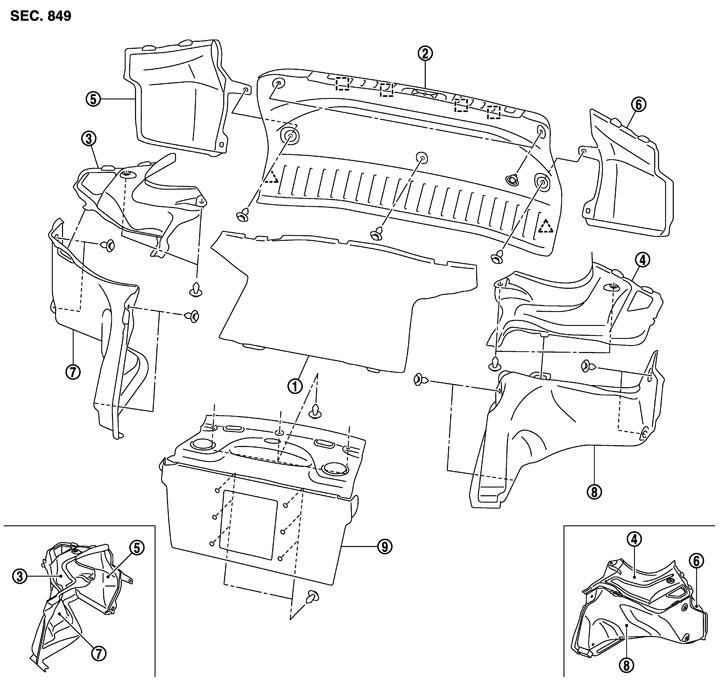

Exploded View




1.
 		Trunk floor carpet
 		2.
 		Trunk rear finisher
 		3.
 		Trunk side finisher upper RH
4.
 		Trunk side finisher upper LH
 		5.
 		Trunk side finisher back RH
 		6.
 		Trunk side finisher back LH
7.
 		Trunk side finisher lower RH
 		8.
 		Trunk side finisher lower LH
 		9.
 		Trunk front finisher

: Pawl




: Metal clip



■ CAUTION ■
 Each 3-5-7 and 4-6-8 is fixed by tuck.

Removal and Installation


 REMOVAL

    1.Fully open the trunk lid.
    2.Remove the trunk weather-strip.
    3.Remove the trunk front finisher.
    4.Remove the trunk side finisher (LH/RH).
    5.Remove the trunk rear finisher.
    6.Remove the trunk floor carpet.

 INSTALLATION

Install in the reverse order of removal.
