HOOD HINGE
HOOD

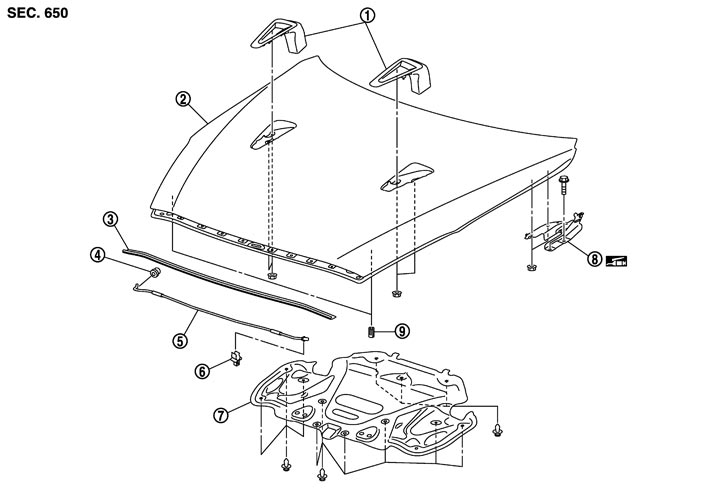

Exploded View
|
1. |
Hood air intake |
2. |
Hood panel |
3. |
Hood front seal |
|
4. |
Grommet |
5. |
Hood support rod |
6. |
Clamp |
|
7. |
Hood insulator |
8. |
Hood hinge |
9. |
Hood bumper rubber |
|
Refer to Components for the symbols shown in the figure. |
|||||
Removal and Installation
REMOVAL- 1.Remove the hood assembly. Refer to Removal and Installation.
- 2.Remove the front fender. Refer to Removal and Installation.
- 3.Remove the hood hinge mounting bolts (body side), and then remove the hood hinge.
INSTALLATIONInstall in the reverse order of removal.
■ CAUTION ■
- Apply anticorrosive agent onto the mounting surface.
- Check hood hinge rotating part for poor lubrication. If necessary, apply body grease.
- After installation, check hood open/close, lock/unlock operation.
- After installation, apply touch-up paint (the body color) onto the head of hood hinge mounting bolts and nuts.
- After installation, perform the fitting adjustment. Refer to Adjustment.
