DOOR STRIKER
DOOR

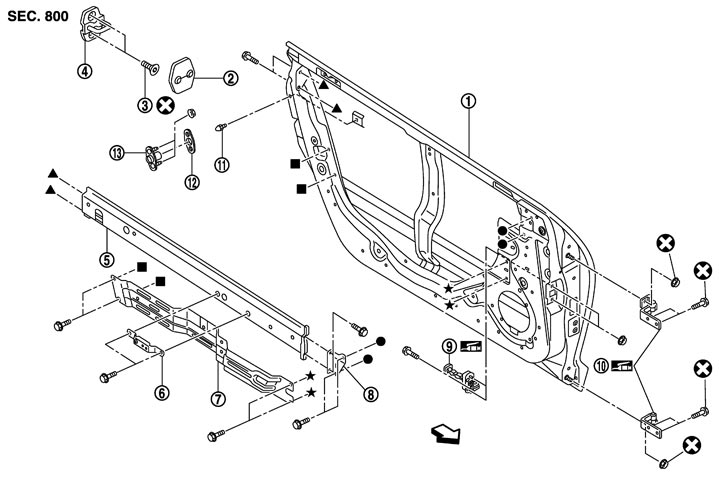

Exploded View
|
1. |
Door panel |
2. |
Door striker cover |
3. |
TORX bolt |
|
4. |
Door striker |
5. |
Door inner west reinforcement |
6. |
Door grip bracket |
|
7. |
Door module assembly |
8. |
Bracket |
9. |
Check link |
|
10. |
Door hinge |
11. |
Dovetail male |
12. |
Dovetail female cover |
|
13. |
Dovetail female |
|
|
|
|
 : Vehicle front |
|||||
|
Refer to Components for the symbols shown in the figure. |
|||||
Removal and Installation
REMOVAL- 1.Remove the door striker using a remover tool
- 2.Remove the TORX bolts, and then remove the door striker.
INSTALLATIONInstall in the reverse order of removal.
■ CAUTION ■
- After installation, check door open/close, lock/unlock operation.
- After installation, perform the fitting adjustment. Refer to Adjustment.
