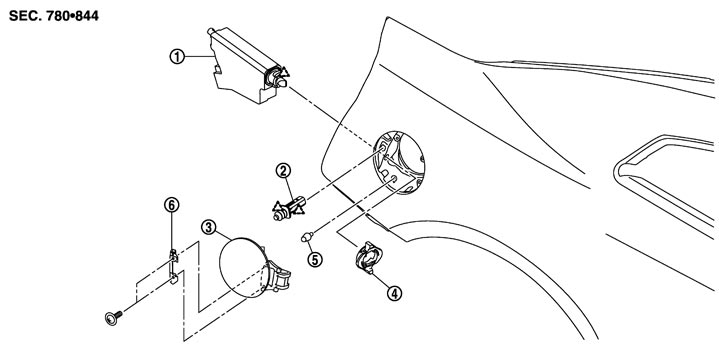

FUEL FILLER LID OPENER
Exploded View
|
1. |
Fuel filler lid opener actuator |
2. |
Lock and cable assembly |
3. |
Fuel filler lid assembly |
|
4. |
Lock nut |
5. |
Bumper rubber |
6. |
Fuel filler cover |
 : Pawl |
|||||
|
Refer to Components for the symbols shown in the figure. |
|||||
Removal and Installation
NOTE：
Unlock the fuel filler lid by pulling the rod if the operation of fuel filler lid opener actuator (1) is malfunctioning.
REMOVAL- 1.Remove the mounting screw, and then remove the fuel filler lid.
- 2.Push and disengage the tabs of lock and cable assembly from the vehicle body, and remove them.
- 3.Rotate the lock nut counterclockwise and remove it.
- 4.Push the tabs of fuel filler lid opener actuator, and then press them toward vehicle rear.
- 5.Remove the trunk side finisher lower (RH). Refer to Exploded View.
- 6.Disconnect the connector, and then remove the fuel filler lid opener actuator.
INSTALLATIONInstall in the reverse order of removal.
■ CAUTION ■
After installation, check fuel filler lid open/close, lock/unlock operation.
