Nissan GT-R (R35) · Service Manual BODY EXTERIOR, DOORS, ROOF & VEHICLE SECURITY

INSTRUMENT CENTER

INSIDE KEY ANTENNA

Exploded View


Refer to Exploded View.

Removal and Installation


 REMOVAL

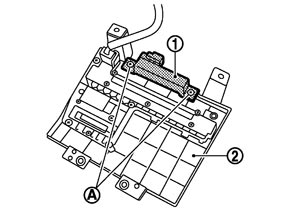

    1.Remove the console finisher assembly (2). Refer to Removal and Installation.
    2.Remove the mounting screws (A) from the inside key antenna (instrument panel center).
    3.Disconnect the inside key antenna (instrument panel center) connector, and then remove the inside key antenna (instrument panel center) (1) from the console finisher assembly.

 INSTALLATION

Install in the reverse order of removal.
