Nissan GT-R (R35) · Service Manual BODY EXTERIOR, DOORS, ROOF & VEHICLE SECURITY

TRUNK ROOM

INSIDE KEY ANTENNA

Exploded View


Refer to Exploded View.

Removal and Installation


 REMOVAL

    1.Remove the trunk carpet and trunk lower felt. Refer to Removal and Installation.

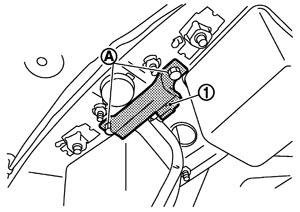

    2.Disconnect the inside key antenna (trunk) connector, and then remove the mounting clip (A) of the inside key antenna (trunk).
    3.Remove the inside key antenna (trunk) (1).

 INSTALLATION

Install in the reverse order of removal.
