Nissan GT-R (R35) · Service Manual BODY EXTERIOR, DOORS, ROOF & VEHICLE SECURITY

PASSENGER SIDE

OUTSIDE KEY ANTENNA

Exploded View


Refer to Exploded View.

Removal and Installation


 REMOVAL

    1.Remove the door finisher (passenger side). Refer to Removal and Installation.

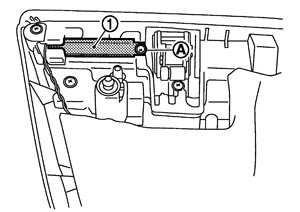

    2.Remove the outside key antenna mounting screw (A), and then remove the outside key antenna (1) from the door finisher (passenger side).

 INSTALLATION

Install in the reverse order of removal.
