Nissan GT-R (R35) · Service Manual BODY EXTERIOR, DOORS, ROOF & VEHICLE SECURITY

REAR BUMPER

OUTSIDE KEY ANTENNA


 REMOVAL

    1.Remove the rear bumper. Refer to Removal and Installation.

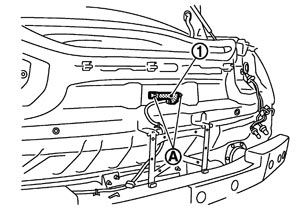

    2.Disconnect the outside key antenna (rear bumper) connector, and then remove the mounting clip (A) of the outside key antenna (rear bumper).
    3.Remove the outside key antenna (rear bumper) (1).

 INSTALLATION

Install in the reverse order of removal.
