Nissan GT-R (R35) · Service Manual BODY EXTERIOR, DOORS, ROOF & VEHICLE SECURITY

INTELLIGENT KEY WARNING BUZZER


 REMOVAL

    1.Remove the air cleaner box (RH).

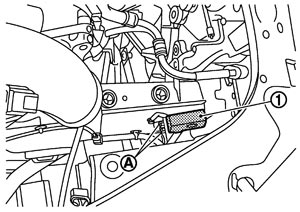

    2.Remove the vehicle outside buzzer mounting bolt (A), and then disconnect the vehicle outside buzzer connector.
    3.Remove the vehicle outside buzzer (1).

 INSTALLATION

Install in the reverse order of removal.
