Nissan GT-R (R35) · Service Manual BODY EXTERIOR, DOORS, ROOF & VEHICLE SECURITY

KEY SLOT

Exploded View


Refer to Exploded View.

Removal and Installation


 REMOVAL

    1.Remove the lower instrument panel . Refer to Removal and Installation.
    2.Disconnect the key slot connector.

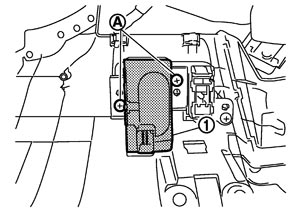

    3.Remove the key slot mounting screw (A), and then remove the key slot (1).

 INSTALLATION

Install in the reverse order of removal.
