Nissan GT-R (R35) · Service Manual BODY EXTERIOR, DOORS, ROOF & VEHICLE SECURITY

TRUNK LID OPENER SWITCH

Exploded View


Refer to Exploded View.

Removal and Installation


 REMOVAL

    1.Remove the lower instrument panel . Refer to Removal and Installation.

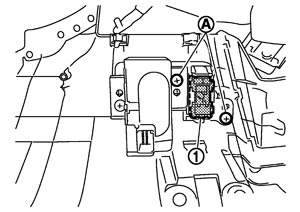

    2. Remove the trunk lid opener switch mounting screw (A), and then remove the trunk lid opener switch (1) from the lower instrument panel RH.


 INSTALLATION

Install in the reverse order of removal.
