Nissan GT-R (R35) · Service Manual BODY EXTERIOR, DOORS, ROOF & VEHICLE SECURITY

FENDER PROTECTOR

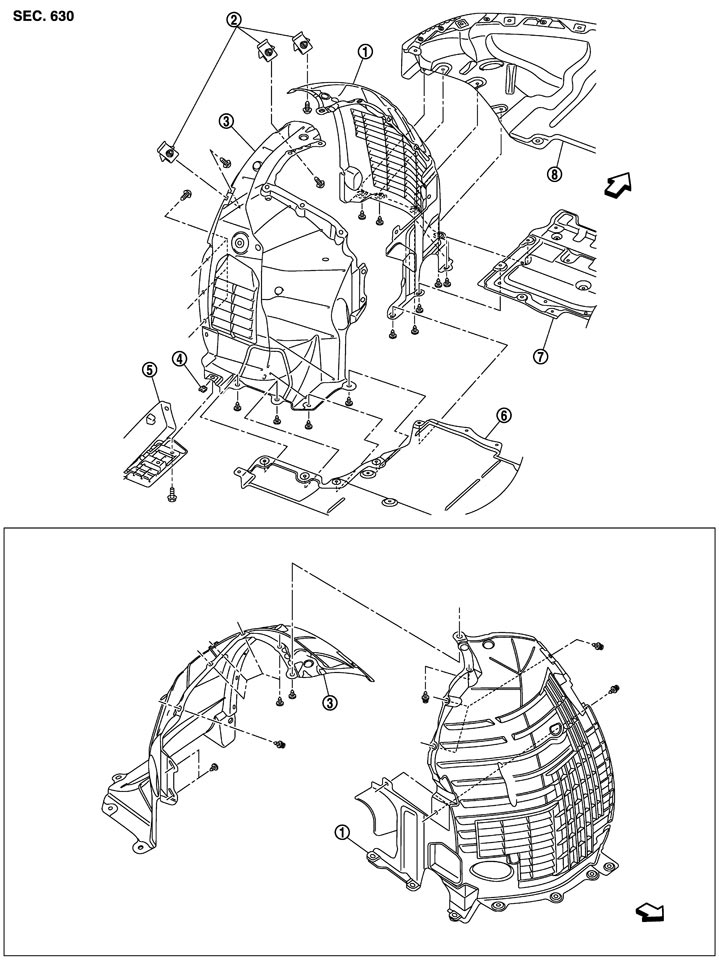

Exploded View




1.
 		Fender protector (front)
 		2.
 		Fender clip
 		3.
 		Fender protector (rear)
4.
 		J-nut
 		5.
 		Center mud guard
 		6.
 		Floor under cover
7.
 		Front under cover



: Vehicle front

Removal and Installation


 REMOVAL

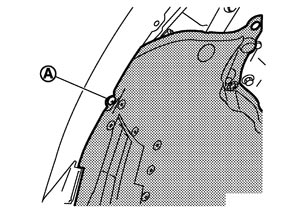

    1.Remove the clip (A) from the front edge of the center mud guard.

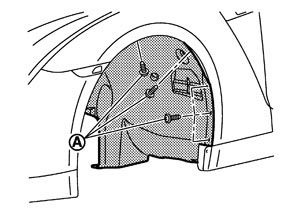

    2.Remove the screws (A) connecting the fender protector (rear).

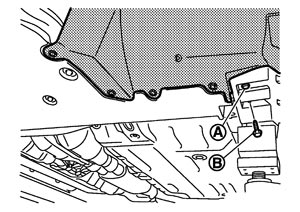

    3.Remove the bolt (A) and the screw (B) on the center mud guard lower surface.

    4.Remove the clip of the fender protector (rear).
    5.Remove the fender clips from wheel house arches, and then remove fender protector (rear) from wheel house.
    6.Remove the screw (A) connecting the fender protector (front).

    7.Remove the clips of the fender protector (front).
    8.Remove the fender clips from wheel house arches, and then remove fender protector (front) from wheel house.
    9.Remove the fender clips after removing the fender protector.

 INSTALLATION

Install in the reverse order of removal.
