ENGINE UNDER COVER
FLOOR SIDE FAIRING

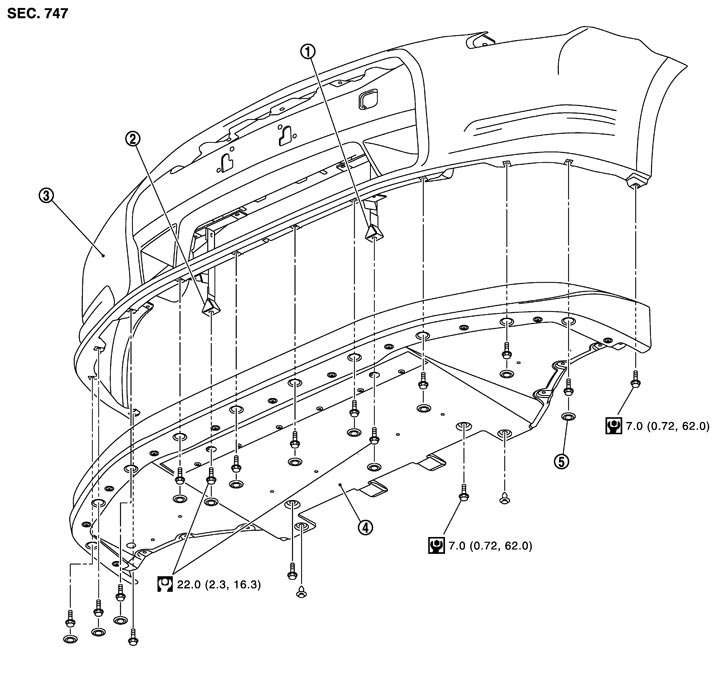

Exploded View
|
1. |
Bumper bracket LH |
2. |
Bumper bracket RH |
3. |
Bumper fascia |
|
4. |
Engine under cover |
5. |
Hole cover |
|
|
|
Refer to Components for symbols in the figure. |
|||||
Removal and Installation
REMOVAL- 1.Remove the hole covers.
- 2.Remove the clips connecting the engine under cover and the fender protector (front).
- 3.Remove the clips (engine undercover rear edge) connected with the engine under cover.
- 4.Remove the bolts connecting the radiator core support.
- 5.Remove the bolts connecting the bumper brackets (RH, center, LH).
- 6.Remove the bolts connecting the bumper fascia.
- 7.Pull the engine under cover toward the rear of the vehicle and remove.
INSTALLATIONNote the following, and install in the reverse order of removal.
■ CAUTION ■
- Visually check the clips for deformation and damage at installation. Replace with new ones if necessary.
- Always tighten the mounting bolts to the specified torque.
- Be careful to install the hole cover because it may drop in the cover if it is pressed excessively.
