FRONT UNDER COVER
FLOOR SIDE FAIRING

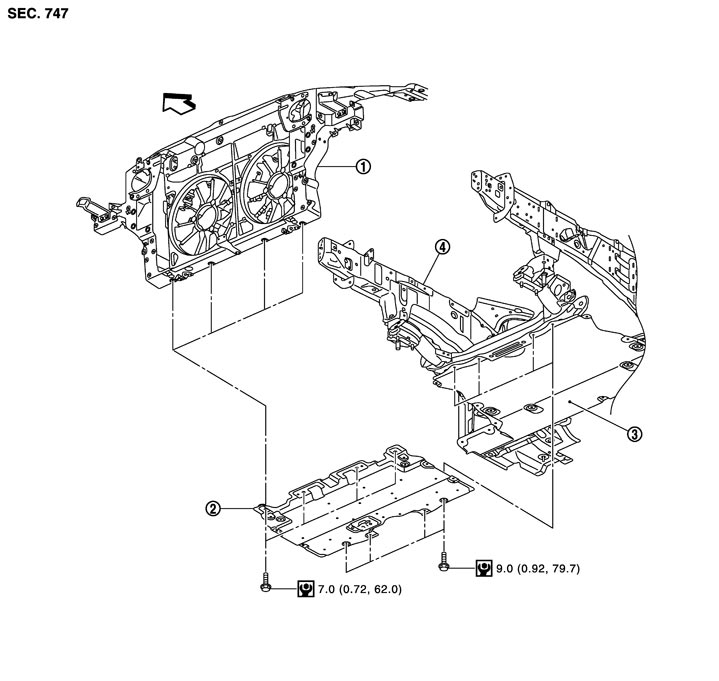

Exploded View
|
1. |
Radiator core support assembly |
2. |
Front under cover |
3. |
Floor under cover |
|
4. |
Side member |
|
|
|
|
 : Vehicle front |
|||||
|
Refer to Components for symbols in the figure. |
|||||
Removal and Installation
REMOVAL- 1.Remove the engine under cover. Refer to Removal and Installation.
- 2.Remove the clip connecting the front under cover and the fender protector (LH/RH) (front). Refer to Exploded View.
- 3.Remove the bolt (front undercover rear edge) tightened together with the floor under cover.
- 4.Remove the bolts (front under cover front edge) connecting the radiator core support.
- 5.Remove the front under cover.
INSTALLATIONNote the following, and install in the reverse order of removal.
■ CAUTION ■
- Visually check the clips for deformation and damage at installation. Replace with new ones if necessary.
- Always tighten the mounting bolts to the specified torque.
