Nissan GT-R (R35) · Service Manual BODY EXTERIOR, DOORS, ROOF & VEHICLE SECURITY

FLOOR UNDER COVER

FLOOR SIDE FAIRING

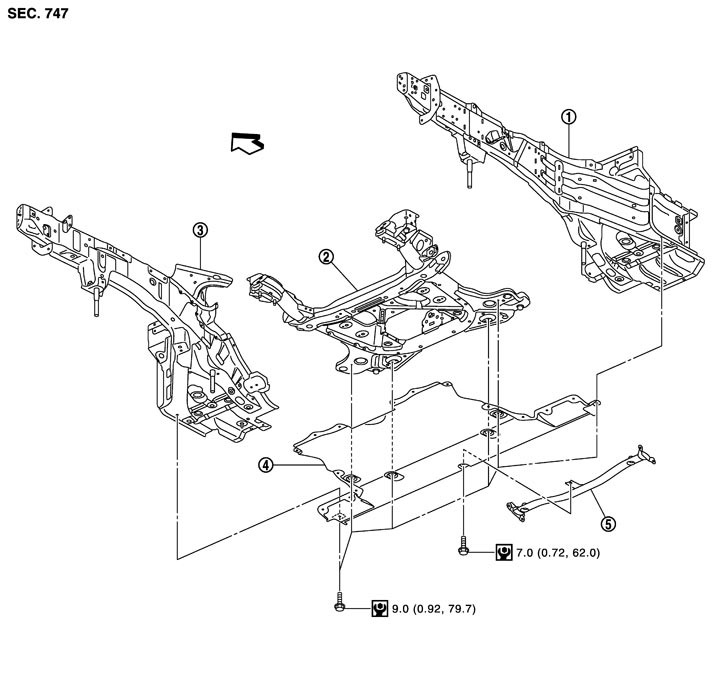

Exploded View




1.
 		Front side member LH
 		2.
 		Suspension member
 		3.
 		Front side member RH
4.
 		Floor under cover
 		5.
 		Front cross bar bracket

: Vehicle front
Refer to Components for symbols in the figure.

Removal and Installation


 REMOVAL

    1.Remove the clip connecting the floor under cover and the fender protector (LH/RH) (rear). Refer to Exploded View.
    2.Remove the bolt (front under cover rear edge) tightened together with the front under cover.
    3.Remove the floor under cover mounting bolts.
    4.Remove the floor under cover.

 INSTALLATION

Note the following, and install in the reverse order of removal.
■ CAUTION ■
  • Visually check the clips for deformation and damage at installation. Replace with new ones if necessary.
  • Always tighten the mounting bolts to the specified torque.
