FRONT DIFFUSER

FLOOR SIDE FAIRING

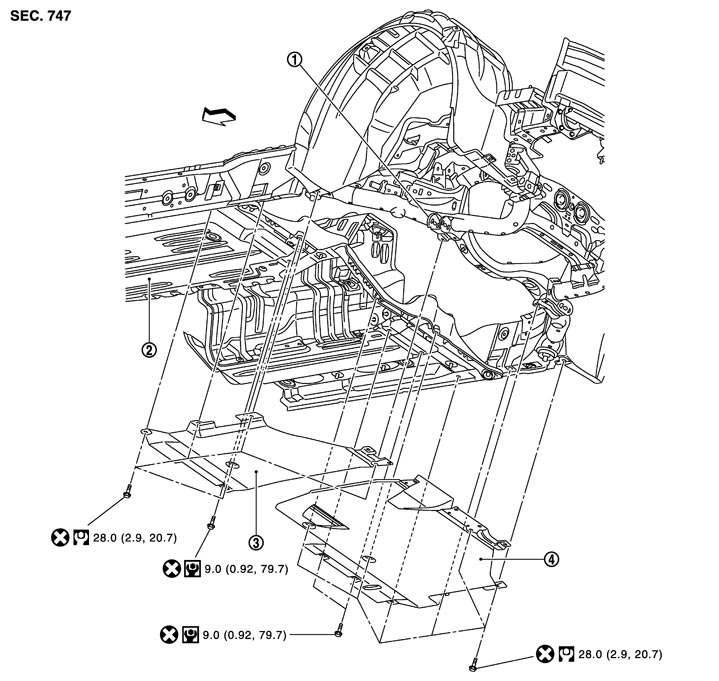

Exploded View




1.
 		Rear suspension member
 		2.
 		Floor assembly
 		3.
 		Front diffuser LH
4.
 		Front diffuser RH



: Vehicle front
Refer to Components for symbols in the figure.

Removal and Installation


 REMOVAL

 Front diffuser RH

    1.Remove the bolt (rear diffuser front edge) tighten together with the rear diffuser (center).
    2.Remove the front diffuser RH mounting bolts.
    3.Remove the front diffuser RH.

 Front diffuser LH

    1.Remove the bolt (rear diffuser front edge) tighten together with the rear diffuser (center).
    2.Remove the front diffuser LH mounting bolts.
    3.Remove the front diffuser LH.

 INSTALLATION

Note the following, and install in the reverse order of removal.
■ CAUTION ■
  • Replace the mounting bolts with new ones to prevent electric corrosion when removing and installing the front diffuser.
  • Always tighten the mounting bolts to the specified torque.
