Nissan GT-R (R35) · Service Manual BODY EXTERIOR, DOORS, ROOF & VEHICLE SECURITY

DOOR OUTSIDE MOLDING

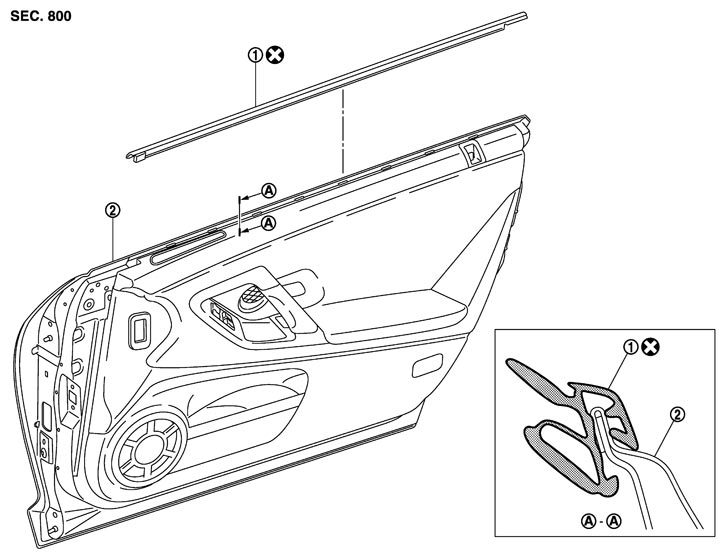

Exploded View




1.
 		Door outside molding
 		2.
 		Door panel assembly

Refer to Components for symbols in the figure.

Removal and Installation


 REMOVAL

    1.Fully open the door window.
    2.Twist the door outside molding (1) toward the outside of the vehicle, and then lift up and remove it while disengaging the pawls.


 INSTALLATION

Install in the reverse order of removal.
