Nissan GT-R (R35) · Service Manual BODY EXTERIOR, DOORS, ROOF & VEHICLE SECURITY

DOOR PARTING SEAL

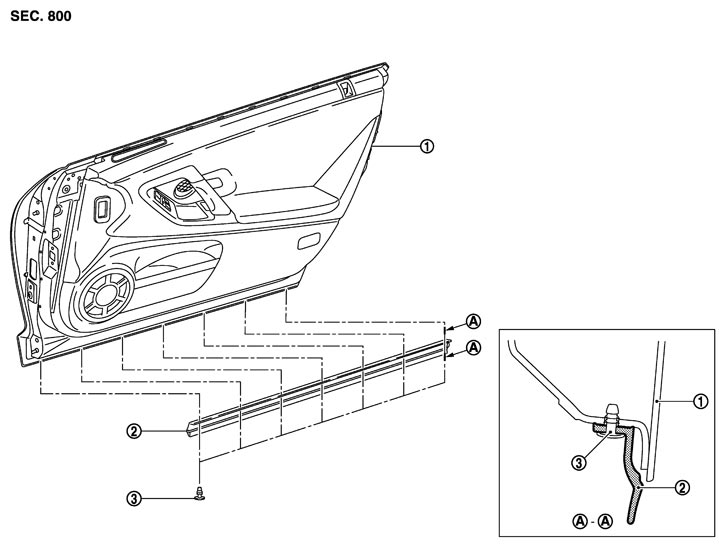

Exploded View




1.
 		Door assembly
 		2.
 		Door parting seal
 		3.
 		Parting seal clip

Removal and Installation


 REMOVAL

    1.Fully open the door.
    2.Remove the clip (parting seal clip) of door parting seal (1) with the remover tool (A).
    ■ CAUTION ■
     Be carful no to damage the body.


    		: Clip


    3.Remove the door parting seal from the door assembly.

 INSTALLATION

Note the following, and install in the reverse order of removal.
■ CAUTION ■
Visually check the clips for deformation and damage at installation. Replace with new ones if necessary.
