INSPECTION AND ADJUSTMENT

The purpose of the operational check is to check that the individual system operates normally.

Check condition

: Engine running at normal operating temperature.

If the temperature felt by the customer is different than the air flow temperature controlled by the temperature setting, the A/C auto amp. control temperature can be adjusted to compensate for the temperature setting.

With CONSULT-III
Perform “TEMP SET CORRECT” of HVAC work support item.

Work support items	Display (°F)	Display (°C)
TEMP SET CORRECT	6	3.0
	5	2.5
	4	2.0
	3	1.5
	2	1.0
	1	0.5
	0 (initial status)	0 (initial status)
	−1	−0.5
	−2	−1.0
	−3	−1.5
	−4	−2.0
	−5	−2.5
	−6	−3.0

NOTE：

• When −3.0°C (−6°F) is corrected on the temperature setting set as 25.0°C (77°F), the temperature controlled by A/C auto amp. is 25.0°C (77°F) − 3.0°C (−6°F) = 22.0°C (72°F) and the temperature becomes lower than the temperature setting.

• When the battery cable is disconnected from the negative terminal or when the battery voltage becomes 10 V or less, the setting of the difference between the set temperature and control temperature may be cancelled.


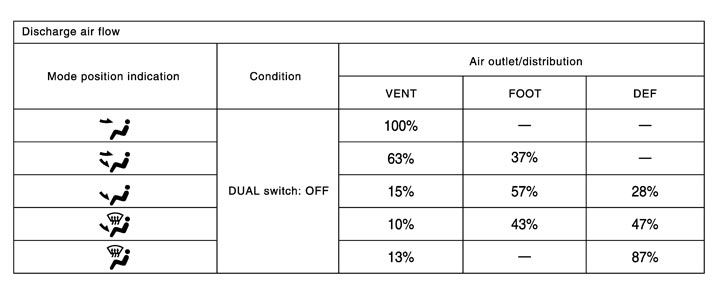

In FOOT mode, the air blowing to DEF can change ON/OFF.

With CONSULT-III
Perform the “BLOW SET” of HVAC work support item.

Work support items	Display	Defroster door position
		Auto control	Manual control
BLOW SET	MODE 1	OPEN	CLOSE
	MODE 2 (initial status)	OPEN	OPEN
	MODE 3	CLOSE	OPEN
	MODE 4	CLOSE	CLOSE

NOTE：

When the battery cable is disconnected from the negative terminal or when the battery voltage becomes 10 V or less, the setting of the discharge air mix ratio in FOOT mode may be cancelled.

• If the ignition switch is turned to the OFF position while the FRE switch is set to ON (fresh air intake), “Perform the memory” or “Do not perform the memory” of FRE switch ON (fresh air intake) condition can be selected.
• If “Perform the memory” was set, the FRE switch will be ON (fresh air intake) when turning the ignition switch to the ON position again.
• If “Do not perform the memory” was set, the air inlets will be controlled automatically when turning the ignition switch to the ON position again.

With CONSULT-III
Perform the “FRE MEMORY SET” of HVAC work support item.

Work support items	Display	Setting
FRE MEMORY SET	WITHOUT (initial status)	Perform the memory of manual FRE
	WITH	Do not perform the memory of manual FRE (auto control)

NOTE：

When the battery cable is disconnected from the negative terminal or when the battery voltage becomes 10 V or less, the setting of the FRE switch memory function may be cancelled.

• If the ignition switch is turned to the OFF position while the REC switch is set to ON (recirculation), “Perform the memory” or “Do not perform the memory” of REC switch ON (recirculation) condition can be selected.
• If “Perform the memory” was set, the REC switch will be ON (recirculation) when turning the ignition switch to the ON position again.
• If “Do not perform the memory” was set, the air inlets will be controlled automatically when turning the ignition switch to the ON position again.

With CONSULT-III
Perform the “REC MEMORY SET” of HVAC work support item.

Work support items	Display	Setting
REC MEMORY SET	WITHOUT	Perform the memory of manual REC
	WITH (initial status)	Do not perform the memory of manual REC (auto control)

NOTE：

When the battery cable is disconnected from the negative terminal or when the battery voltage becomes 10 V or less, the setting of the REC switch memory function may be cancelled.
