RELAY CONTROL SYSTEM

*: With daytime running light system

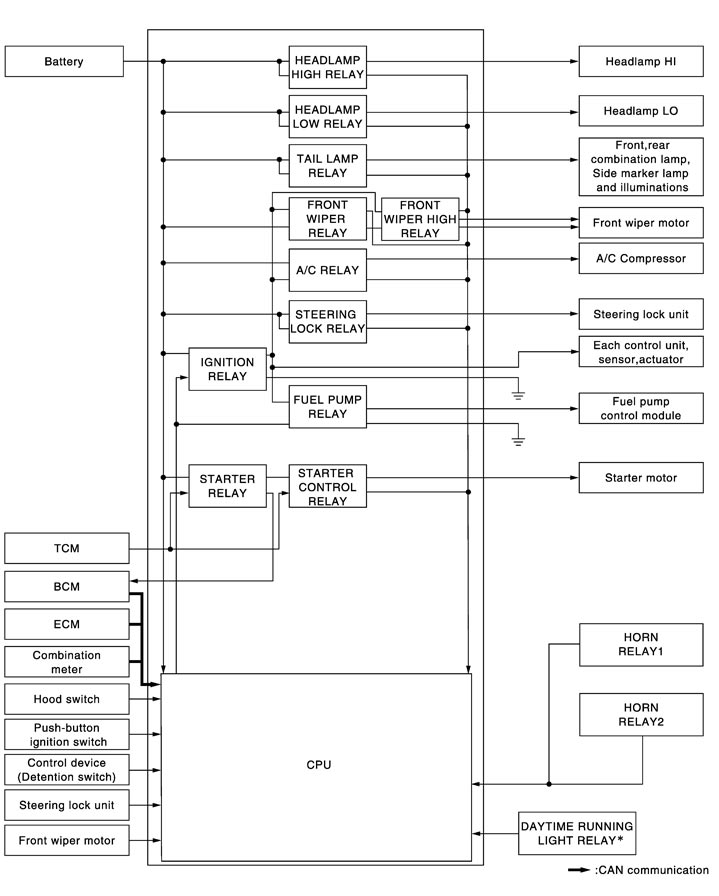

IPDM E/R activates the internal control circuit to perform the relay ON‐OFF control according to the input signals from various sensors and the request signals received from control units via CAN communication.

■ CAUTION ■

IPDM E/R integrated relays cannot be removed.

NOTE：

BCM controls the starter relay.

Control relay	Input/output	Transmit unit	Control part	Reference page
Headlamp low relay Headlamp high relay	Low beam request signal High beam request signal	BCM (CAN)	Headlamp low Headlamp high	System Diagram
Tail lamp relay	Position light request signal	BCM (CAN)	Parking lamp Side marker lamp License plate lamp Tail lamp	System Diagram
			Illuminations	System Diagram
Front wiper relay Front wiper high relay	Front wiper request signal	BCM (CAN)	Front wiper	System Diagram
	Front wiper stop position signal	Front wiper motor
Horn relay 1 Horn relay 2	Theft warning horn request signal Horn reminder signal	BCM (CAN)	Horn (low) Horn (high)	System Diagram
Starter relayNOTE Starter control relay	Starter control relay signal	BCM (CAN)	Starter motor	Description, Description
	Steering lock unit condition signal	Steering lock unit
	Starter relay control signal	TCM
Steering lock relay	Steering lock relay signal	BCM (CAN)	Steering lock unit	Description
	Steering lock unit condition signal	Steering lock unit
	Control device (Detention switch) signal	Control device (Detention switch)
A/C relay	A/C compressor request signal	ECM (CAN)	A/C compressor (magnet clutch)	System Diagram
Ignition relay	Ignition switch ON signal	BCM (CAN)	Ignition relay	Description
	Vehicle speed signal	Combination meter (CAN)
	Push‐button ignition switch signal	Push‐button ignition switch
Daytime running light relay	Daytime running light request signal	BCM (CAN)	Headlamp high (High beam at approximately half illumination)	System Diagram

1.	IPDM E/R

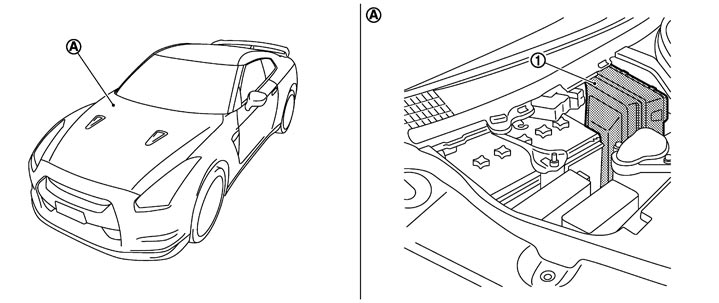

A.	Engine room dash panel (RH)
