Nissan GT-R (R35) · Service Manual VENTILATION, HEATER & AIR CONDITIONER

IN-CABIN MICROFILTER

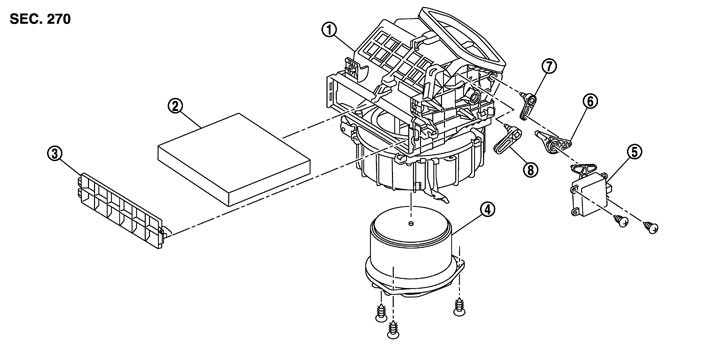

Exploded View




1.
 		Blower unit
 		2.
 		In-cabin microfilter
 		3.
 		Filter cover
4.
 		Blower motor assembly
 		5.
 		Intake door motor
 		6.
 		Intake door link
7.
 		Intake door lever 1
 		8.
 		Intake door lever 2


Removal and Installation


 REMOVAL

    1.Remove instrument lower panel RH. Refer to Exploded View.

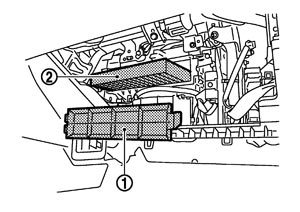

    2.Remove filter cover (1), and then remove in‐cabin microfilter (2).

 INSTALLATION

Installation is basically the reverse order of removal.

Replacement


Replace in‐cabin microfilter.
Refer to Schedule 1 and Schedule 2.
Affix a caution label inside the glove box when replacing filter.
