Nissan GT-R (R35) · Service Manual VENTILATION, HEATER & AIR CONDITIONER

VENTILATOR DUCT

DUCT AND GRILLE


 REMOVAL

    1.Remove instrument panel assembly. Refer to Exploded View.

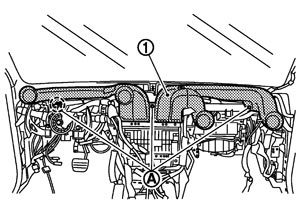

    2.Remove mounting screws (A), and then remove ventilator duct (1).

 INSTALLATION

Installation is basically the reverse order of removal.
