Nissan GT-R (R35) · Service Manual VENTILATION, HEATER & AIR CONDITIONER

SIDE DEFROSTER NOZZLE

DUCT AND GRILLE


 REMOVAL

    1.Remove ventilator duct. Refer to Exploded View.

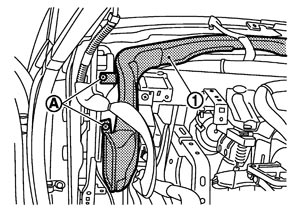

    2.Remove mounting screws (A), and then remove side defroster nozzle LH (1).

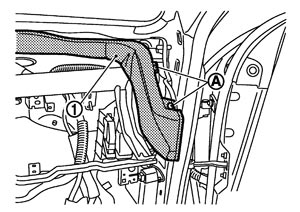

    3.Remove mounting screws (A), and then remove side defroster nozzle RH (1).

 INSTALLATION

Installation is basically the reverse order of removal.
