Nissan GT-R (R35) · Service Manual VENTILATION, HEATER & AIR CONDITIONER

SIDE DEFROSTER DUCT

DUCT AND GRILLE


 REMOVAL

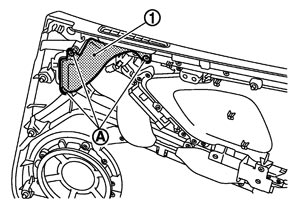

 Driver Side

  1. Remove door finisher LH. Refer to Exploded View.
  2. Remove mounting screws (A), and then remove side defroster duct LH (1).

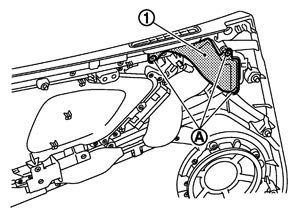

 Passenger Side

  1. Remove door finisher RH. Refer to Exploded View.
  2. Remove mounting screws (A), and then remove side defroster duct RH (1).


 INSTALLATION

Installation is basically the reverse order of removal.
