Nissan GT-R (R35) · Service Manual VENTILATION, HEATER & AIR CONDITIONER

FOOT GRILLE

DUCT AND GRILLE


 REMOVAL

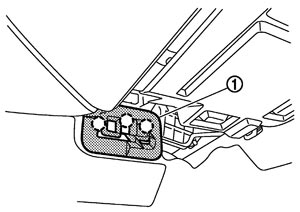

    1.Remove foot grille LH (1).


    		: Pawl


    2.Remove foot grille RH (1).


    		: Pawl


 INSTALLATION

Installation is basically the reverse order of removal.
