HEATER DUCT

DUCT AND GRILLE

REMOVAL

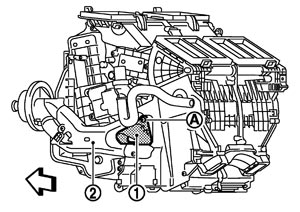

Remove mounting screw (A), and then remove heater duct (1) from heater & cooling unit assembly (2).

: Vehicle front

INSTALLATION

Installation is basically the reverse order of removal.
