BODY CONTROL SYSTEM

System Description


 OUTLINE

  • BCM (Body Control Module) controls the various electrical components. It inputs the information required to the control from CAN communication and the signal received from each switch and sensor.
  • BCM has combination switch reading function for reading the operation status of combination switches (light, turn signal, wiper and washer) in addition to a function for controlling the operation of various electrical components. It also has the signal transmission function as the passed point of signal and the power saving control function that reduces the power consumption with the ignition switch OFF.
  • BCM is equipped with the diagnosis function that performs the diagnosis with CONSULT-III and various settings.

 BCM control function list

System
 		Refer to
Combination switch reading system
 		System Diagram
Signal buffer system
 		System Diagram
Power consumption control system
 		System Diagram
Turn signal and hazard warning lamp system
 		System Diagram
Headlamp system
 		System Diagram
Parking, license plate and tail lamps system
 		System Diagram
Exterior lamp battery saver system
 		System Diagram
Daytime running light system
 		System Diagram
Interior room lamp control system
 		System Diagram
Step lamp system
Trunk room lamp system
Interior room lamp battery saver system
 		System Diagram
Front wiper and washer system
 		System Diagram
Warning chime system
 		System Diagram
Door lock system
 		System Diagram
Trunk open system
 		System Diagram
Nissan Vehicle Immobilizer System (NVIS) - NATS
 		System Diagram
Vehicle security system
 		System Diagram
Panic alarm
 		System Description
Rear window defogger system
 		System Diagram
Intelligent Key system/engine start system
 		Door lock function
 		System Diagram

Trunk open function
Remote keyless entry function
Key reminder function
Warning function
Engine start function
Power window system
 		System Diagram
Retained accessory power (RAP) system
 		System Description

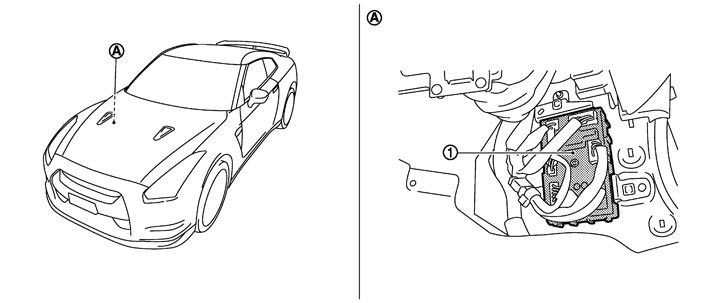

Component Parts Location




1.
 		BCM



A.
 		Dash side lower (passenger side)
