Nissan GT-R (R35) · Service Manual ELECTRICAL & POWER CONTROL

COMBINATION SWITCH

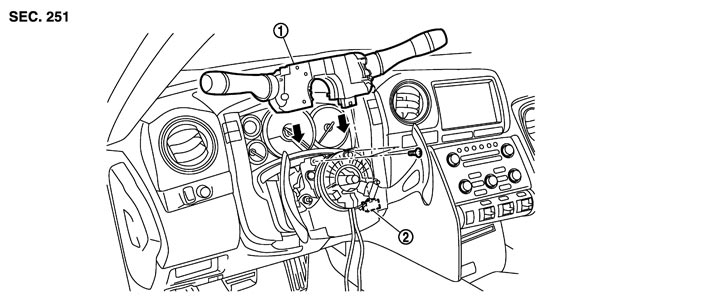

Exploded View




1.
 		Combination switch
 		2.
 		Combination switch connector


Removal and Installation


 REMOVAL

    1.Remove steering column cover. Refer to Exploded View.
    2.Remove screws.
    3.Disconnect the connector.
    4.Pull up the combination switch to remove it.

 INSTALLATION

Install in the reverse order of removal.
