ACCELERATOR CONTROL SYSTEM

Exploded View
Removal and Installation
Inspection

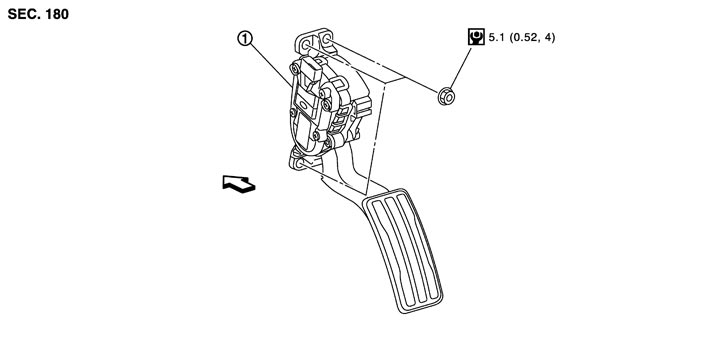

Exploded View

1.	Accelerator pedal assembly
	: Vehicle front
Refer to Components for symbols in the figure.

Removal and Installation

REMOVAL

1.Disconnect accelerator pedal position sensor harness connector.

■ CAUTION ■

Never disassemble accelerator lever. Never remove accelerator pedal position sensor from accelerator lever.
Never impact or drop accelerator pedal assembly during handling.
Be careful to keep accelerator lever away from water.

INSTALLATION

Install in the reverse order of removal.

Inspection

INSPECTION AFTER INSTALLATION

Check accelerator pedal moves smoothly within the whole operation range when it is fully depressed and released.
Check accelerator pedal securely returns to the fully released position.
For the electrical inspection of accelerator pedal position sensor, refer to Description (GT-R certified NISSAN dealer), Description (GT-R certified NISSAN dealer), and Description (GT-R certified NISSAN dealer).

■ CAUTION ■
When harness connector of accelerator pedal position sensor is disconnected, perform “Accelerator Pedal Released Position Learning”. Refer to Description (GT-R certified NISSAN dealer).
