FUEL SYSTEM

• Check fuel lines, fuel filler cap and fuel tank for improper attachment, leakage, cracks, damage, loose connections, chafing or deterioration.




  A	: Engine
  B	: Fuel line
  C	: Fuel tank



• If necessary, repair or replace damaged parts.

■ CAUTION ■

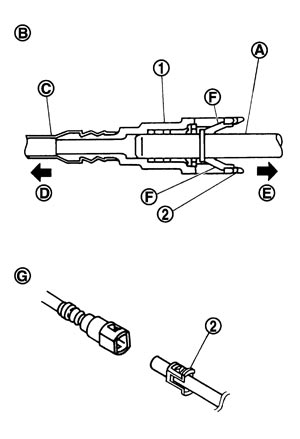

• After connecting fuel tube quick connectors, check quick connectors are secure.





  1	: Quick connector
  2	: Retainer
  A	: Hard tube (or the equivalent)
  B	: Connection (cross‐section)
  C	: Resin tube
  D	: To under floor fuel line
  E	: To fuel tank
  F	: Tab
  G	: Disconnection



• Never allow that connector and resin tube to contact any adjacent parts.
