PREPARATION

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Tool number (Kent-Moore No.) Tool name		Description

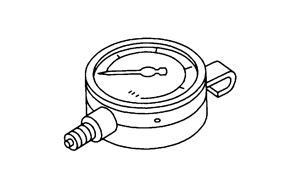

ST25051001 (J25695-1) Oil pressure gauge		Measuring oil pressure Maximum measuring range: 2,452 kPa (25 kg/cm2, 356 psi)
ST25052000 (J25695-2) Hose		Adapting oil pressure gauge to oil pan (upper)
KV10115801 (J38956) Oil filter wrench		Removing and installing oil filter a: 64.3 mm (2.531 in)

Tool name		Description
Tube presser		Pressing tube of liquid gasket
Power tools		Loosening bolts and nuts

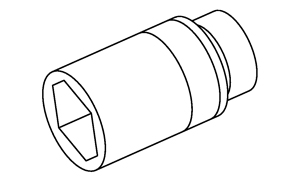

Deep socket		Removing and installing oil pressure switch 27 mm (1.06 in)
